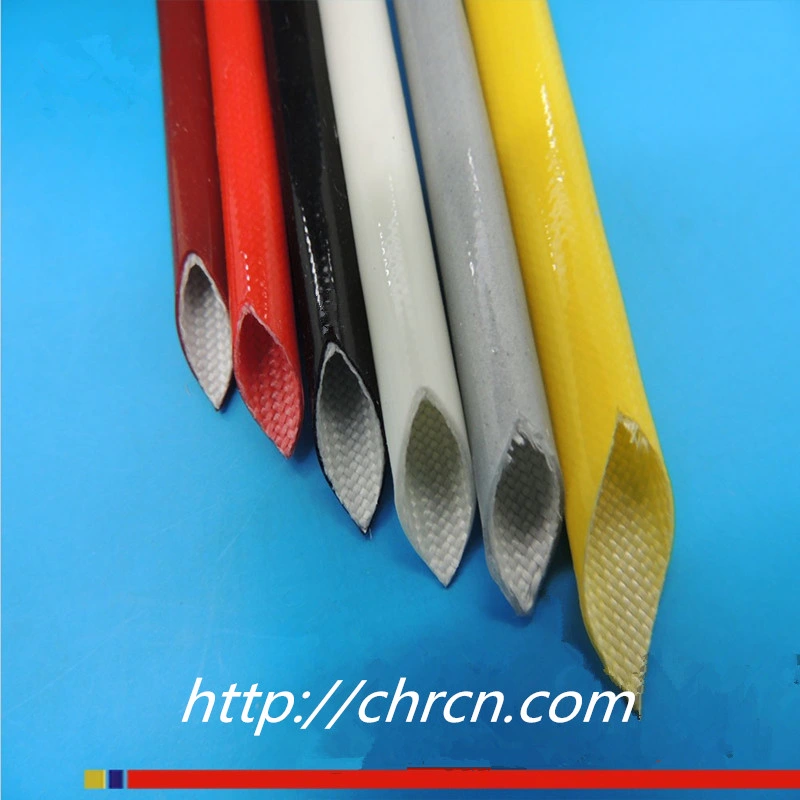

2751 Fiberglass sleeving coated with silicone rubber
1 .Description: 2751 Fiberglass sleeving coated with silicone rubber is made of non-alkali fiberglass coated with silicon rubber under the high temperature.With good dielectric properties, superior elasticity, cold and heat endurance and antiaging properties,resistance temperature is 200, breakdown voltage is from 2.5 to 7.0 KV.
2.Specifications
1).Diameter: 05-40mm

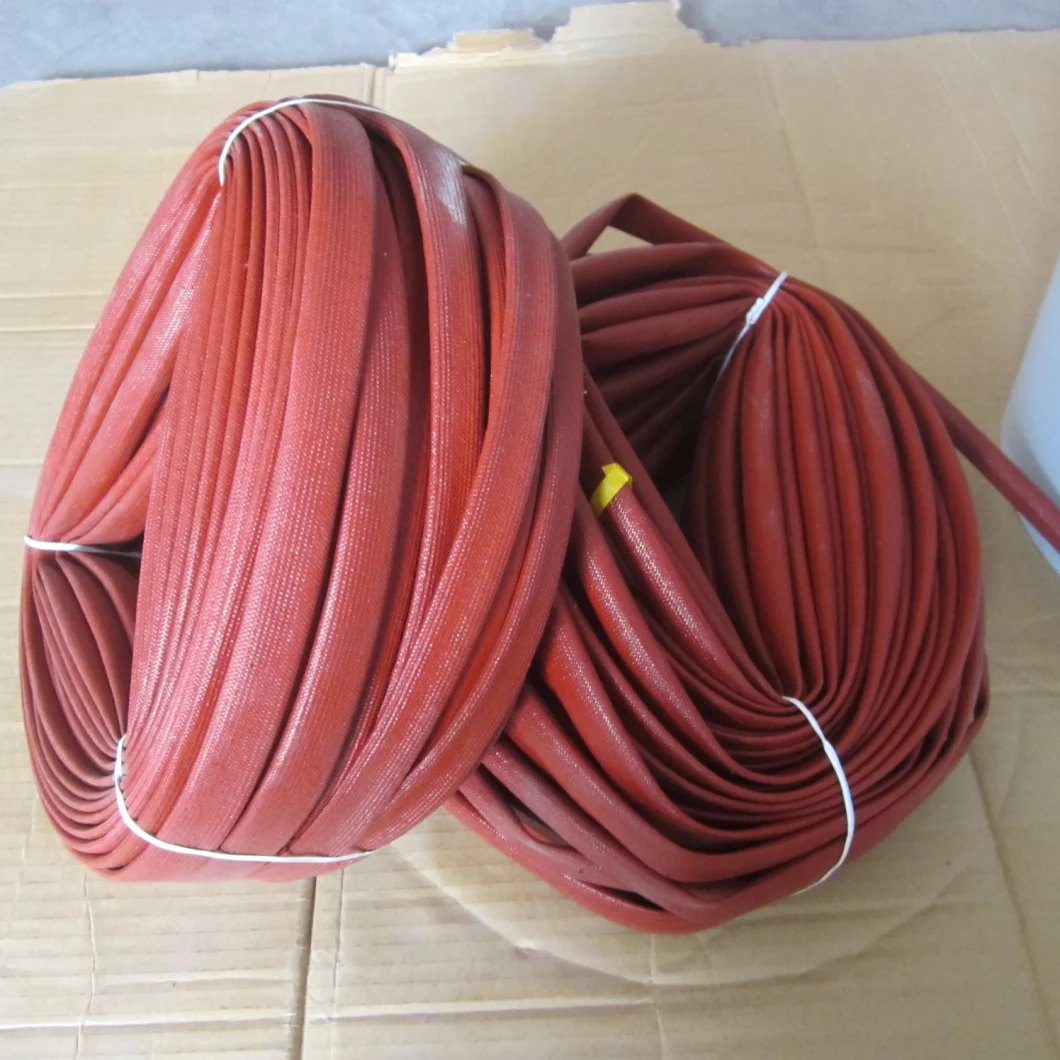

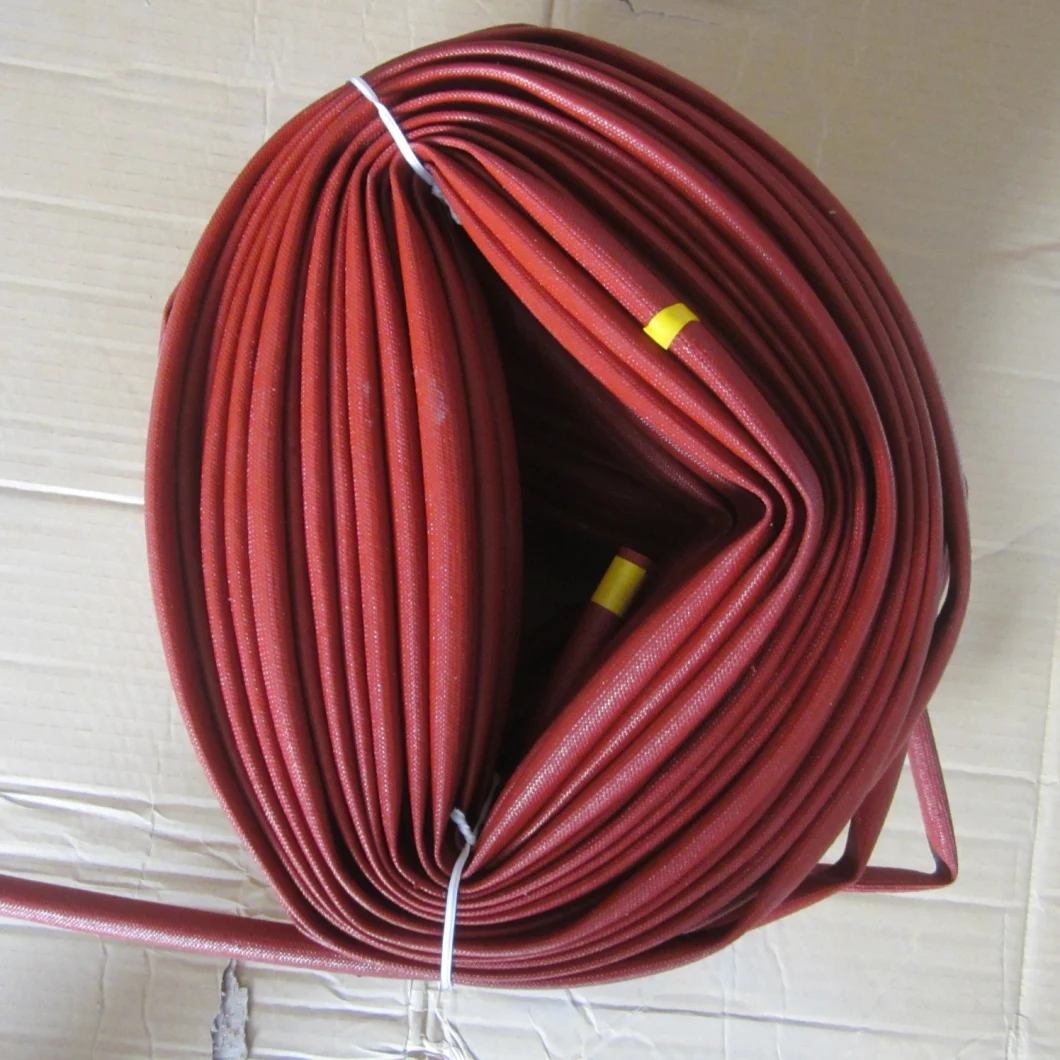

2).Packing: 50-100m/roll
3).resistance temperature: 260
4).breakdown voltage:1.5 to 7.0 KV
3.Color: white, red,other colors according to request
4. Applications: widely used for the insulating protection of H grade electrical machinery, electrical soldering iron, electrical irons, electrical rice cookers as well as other household appliance. and their protection device.
2751 silicon rubber fiberglass sleeving technical Date | ||||
Item | index | |||
diameter | 0.5~40mm | |||
Breakdown voltage | 1.5KV | 2.5KV | 4KV | 7KV |
temperature range | -60°C~260°C | |||
color: | nature | white | red | |
other colors according to request | ||||
Characters of 2751 Silicone rubber fiberglass insulation sleeving:
It is class H(180 °C) insulating naterial.
This product has good qualities of dielectric, high temperature resistance, excellent elasticity and cold resistance.
Application of 2751 Silicone rubber fiberglass insulation sleeving:
This product can be used for wiring insulation and mechanical protection for electrical mechinery and electrical appliances.
